Visual Studio App center (VSAC) is great! It virtually eliminates the humongous effort it usually requires to setup a DevOps pipeline. As an end user, I am completely satisfied with what is on offer. As a developer trying to drive it through APIs, its a nightmare!
Why a nightmare? It’s because it had me stuck on a problem for upto 2 days that would have never risen had there been proper documentation available. Albeit, they do have a swagger notation website (here) which attempts to extensively document all aspects of rest APIs available. The platform is still in its incessant development stage. I hope the documentation will become better with time.
Pro tip : Read the swagger notation in JSON and not the UI. The UI rendered leaves out a lot of information. I suggest leveraging Json Editor Online to make it human readable.
This post aims to guide on executing Espresso tests on VSAC using rest APIs. As of writing this post, the API version is tagged v0.1.
This article assumes you have carried out the following basic steps:
- Creating a user account;
- Creating an organization;
- Either signing up for a trial or have premium access to VSAC;
Creating a test series
A test series is a logical group that holds certain UI tests. They are used to define the nature of UI tests that are executed under this group. To create a new test series, execute the following:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
POST https://api.appcenter.ms/v0.1/apps/<organization_name>/<application_name>/test_series
Headers:
- X-API-Token : <API_token>
- Content-Type : application/json
Body (application/json):
{ name: <test_series_name> }
Example Response:
{
"name": "Master New",
"slug": "master-new",
"mostRecentActivity": "2018-06-09T13:19:23.395Z",
"testRuns": []
}
The API will generate a slug for your test-series. This slug is used to refer to this test-series in suceeding calls.
Get test series
Check if the newly created series reflects on requesting for the entire set. This API may also be used to get the number of tests executed per test-series and their results.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
GET https://api.appcenter.ms/v0.1/apps/<organization_name>/<application_name>/test_series
Headers:
- X-API-Token : <API_token>
- Content-Type : application/json
Example Response:
[
{
"name": "Master New",
"slug": "master-new",
"mostRecentActivity": "2018-06-09T13:19:12.236Z",
"testRuns": []
},
{
"name": "Master",
"slug": "master",
"mostRecentActivity": "2018-06-08T12:35:19.936Z",
"testRuns": [
{
"date": "2018-06-08T12:35:19.936Z",
"statusDescription": "Done",
"failed": 0,
"passed": 1,
"completed": true
}
]
}
]
Executing tests on VSAC is a four step process
- First: Creating a test run. This creates a
test_run_idfor you. Everytest_run_idhas a state which may be retrieved from/stateend point. - Second: Creating file hashes. This API is to intimate VSAC that you wish to upload APKs for testing. For the platform to accept an upload, it needs to know the
SHA-1hashes of the files. - Third: Uploading the APKs as a
multipart/form-data - Fourth: Executing the test
First : Create a new test run
1
2
3
4
5
6
7
8
9
10
POST https://api.appcenter.ms/v0.1/apps/<organization_name>/<application_name>/test_runs
Headers:
- X-API-Token : <API_token>
- Content-Type : application/json
Response:
HTTP Status Code : 201 Created
Headers :
location →/v0.1/apps/{application_id}/test_runs/<test_run_id>
Notice the API does not respond with any body, neither the usual 200 HTTP status code. Instead, you receieve a 201 HTTP statuscode.
Second: Creating file hashes
To create a file hash, ensure you have successfully generated 2 APK files - Build APK & an Android test APK that contains your Espresso test cases. To do that, navigate to your Android project and execute the following
1
$ ./gradlew assembleDebug assembleAndroidTest
The APKs will be generated in app/build/ folder. To find the SHA-1 hash, navigate to each of the folder that contains your APKs and execute:
1
2
3
4
$ shasum <file-name>.apk
# Example output
4eb758d8d46da4711bb814ce6e6099c696411111 <file-name>.apk
On executing each of the commands, the terminal will print a cryptic value. These values will be used in the /hashes/batch API.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
POST https://api.appcenter.ms/v0.1/apps/<organization_name>/<application_name>/test_runs/<test_run_id>/hashes/batch
Headers:
- X-API-Token : <API_token>
- Content-Type : application/json
Example Body (application/json):
[
{
"file_type":"app-file", //Specifies Build APK
"checksum":"df798b4d07597db804546b8ca723780992811111", //Checksum for the build APK
"relative_path":"app-debug.apk" // No need to give the entire path, just the file name is adequate
//Note : If key name 'relative_path' does not work, try 'relativePath'.
}, {
"file_type":"test-file", // Specifies Build APK
"checksum":"4eb758d8d46da4711bb814ce6e6099c696411111", // Checksum for the test APK
"relative_path":"app-debug-androidTest.apk" // No need to give the entire path, just the file name is adequate
//Note : If key name 'relative_path' does not work, try 'relativePath'.
}
]
Example Response:
[
{
"fileType": "app-file",
"checksum": "df798b4d07597db804546b8ca723780992811111",
"relativePath": "app-debug.apk",
"uploadStatus": {
"statusCode": 412,
"location": "https://testcloud.xamarin.com/v0.1/direct_uploads?token=<VSAC_generated_token_here>"
}
},
{
"fileType": "test-file",
"checksum": "4eb758d8d46da4711bb814ce6e6099c696411111",
"relativePath": "app-debug-androidTest.apk",
"uploadStatus": {
"statusCode": 412,
"location": "https://testcloud.xamarin.com/v0.1/direct_uploads?token=<VSAC_generated_token_here>"
}
}
]
Third: Uploading the APKs
The response of /hashes/batch API carries a location key for each of the files for which hashes have been submitted. This is the URL where the respective APKs need to be uploaded. Ensure you upload each APK to their respective URLs.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
POST https://testcloud.xamarin.com/v0.1/direct_uploads?token=<VSAC_generated_token_here>
Headers:
- X-API-Token : <API_token>
- Content : multipart/form-data
- Content-Type : application/x-www-form-urlencoded
Body (form-data):
- relative_path : <relative_path_of_APK_being_uploaded_as_received_in_previous_API>
- file : <Your APK File>
- file_type : <fileType_as_received_in_previous_API>
Response:
HTTP Status Code : 201 Created
If you get HTTP status code 201 as a response for each of the files, you are set to execute your test cases.
Fourth: Execute the test case
To execute a test case, you need to specify which devices the test should run on. To create a new device set, please refer VSAC’s swagger page. I created a set from the portal. To specify a device, you need a device_slug retrieved by /device_sets end point.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
GET https://api.appcenter.ms/v0.1/apps/<organization_name>/<application_name>/owner/device_sets
Headers:
- X-API-Token : <API_token>
- Content-Type : application/json
Example response :
[
{
"id": "a7a0b57e-0d51-4129-9834-fe17ff5c0a63",
"name": "Galaxy Note",
"slug": "galaxy-note",
"osVersionCount": 1,
"manufacturerCount": 1,
"owner": { //Owner information },
"deviceConfigurations": [
{
"id": "f243fd17-e403-43b7-af55-680d8cdf86b4",
"image": { //Device image URL },
"os": "7.1.1",
"osName": "Android 7.1.1",
"model": { //Model Information }
}
]
}
]
With a test run created, APK files uploaded & a device_slug retrieved, we are ready to execute it on Appcenter’s devices!
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
POST https://api.appcenter.ms/v0.1/apps/<organization_name>/<application_name>/test_runs/<test_run_id>/start
Headers:
- X-API-Token : <API_token>
- Content-Type : application/json
Body (application/json):
{
"test_framework" : "espresso",
"device_selection" : <organization_name>/<device_slug>,
"language" : "java",
"locale" : "en_US",
"test_series" : <test_series_name>,
"test_parameters" : {} //You may add custom test parameters here.
}
Example Response:
{
"accepted_devices": [
"Samsung Galaxy Note 8 (7.1.1)"
],
"rejected_devices": []
}

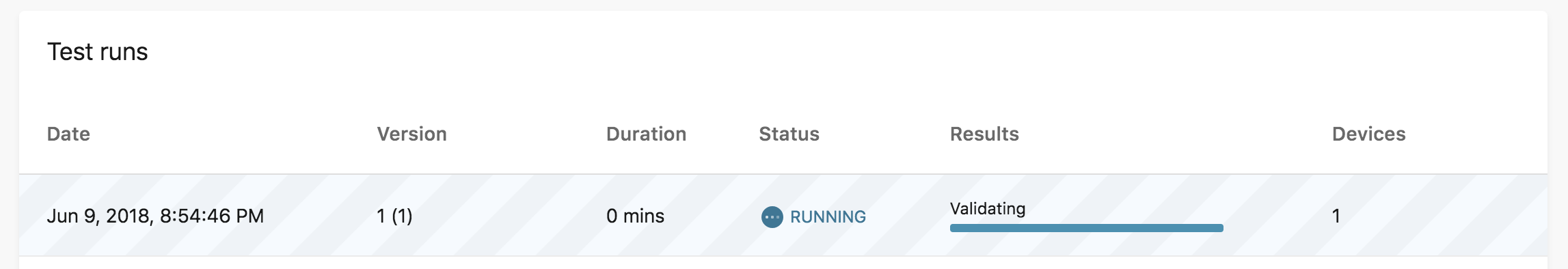

If you receieve a similar response from VSAC, congratulations! You have successfully executed your UI test case through REST APIs! To confirm, you may execute /state API or simply head over to VSAC to have a visual confirmation.
Update Log
- 10th June : Added
device_setsAPI
